Uninterrupted AC power Inverter with charge MPPT controller 150V100A
Energier Apollo all in one inverter
Uninterrupted AC power Inverter with charge MPPT controller 150V100A
Uninterrupted AC power
In the event of a grid failure, or shore / generator power being disconnected, the inverter within
Energier Apollo is automatically activated and takes over supply to the connected loads. This
happens so fast (less than 20ms, typical 10ms) that computers and other electronic equipment
will continue to operate without disruption
High surge power capability
Provided with outstanding surge power capability and low frequency transformer,Energier Apollo
is suitable for heavy inductive load like fridge, coffee maker, microwave, power tools, air conditioner
etc
High performance pure sine wave
Energier Apollo is a sine wave inverter which generates a near perfect sinusoidal AC wave power
output that is very similar or even better to what you can get from your utility grid. Pure sine wave
can guarantee the correct function of sensitive equipment (computer, laser printer, TV etc.) or most
demanding inductive load. Also, your home appliances such as fridge, microwave and power tools
will work smoother, cooler and more efficient.
Features.
-All in one unit integrating multiple functions.
-Can be applied for solar hybrid and power backup system.
-High efficiency up to 93%.
-High performance designed for all kinds of home appliances.
-TBB premium II multi stage charging algorithm with built in
-automatic temperature & voltage compensation charging.
-Equalization charging program was available for flooded and OPZS battery.
-PWM solar charge controller with built in MC4 terminal.
-Lithium Battery charging was available.
-Designed for tropical region.
-Designed to work with weak grid.
-Extremely low status consumption power.
-ALL-IN-ONE for Solar Hybrid-system
-Compatible with majority of cheap generators in the market.
-Built in AEA

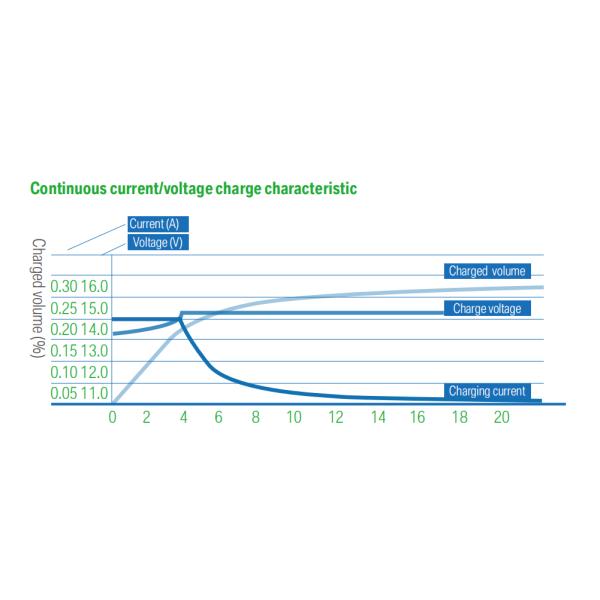

The following figure is charging characteristics of a GEL battery for reference
Specfication
| Model No. | CH1350L | CH2040M | CH2.0M | CH2.0S | CH3.0S | CH4.0S |
| LCD display | N/A | Yes |
| AC IN MCB | N/A | D40 |
| AC OUT MCB | N/A | C16 | C16 | C25 | C32 |
| Inverter |
| Nominal battery Voltage(VDC) | 12 | 24 | 24 | 48 |
| Nominal input voltage Range(VDC) | 9-17 | 18-34 | 18-34 | 40-62.8 |
| Power 30mins @25℃(W) | 1300 | 1700 | 2000 | 2000 | 3000 | 4000 |
| Cont. power @25℃(W) | 1100 | 1300 | 1800 | 1800 | 2700 | 3600 |
| Cont. power @40℃(W) | 1000 | 1200 | 1600 | 1600 | 2400 | 3200 |
| Output voltage | 230Vac±2%,220/230/240Vac Settable, 50HZ±0.05%, 50/60Hz Settable |
| Total harmonic distortion | <3% |
| Efficiency (MAX) | 90.5% | 93% | 93% | 96% | 96% | 96% |
| Zero load power(W) | 10 | 13 | 14 | 14 | 17 | 20 |
| AC input range (VAC) | UPS mode | 184-264 |
| Weak grid &GEN | 168-276 |
| Typical transfer time | <20ms(typical 10ms) | <4ms |
| Transfer switch (A) | 16 | 31 | 31 | 31 | 31 |
| AC Charger& Solar Charger |
| Solar charger type | PWM | MPPT |
| Nominal Output Voltage(VDC) | 12 | 24 | 24 | 48 | 48 | 48 |
| Max PV open circuit voltage (Voc) (VDC) | 25 | 50 | 100 | 150 | 150 | 150 |
| Recommended PV(W) | | | 2000 | 4000 | 4000 | 4000 |
| MPPT range (VDC) | 16-19 | 32-37 | 32-100 | 64-140(150VDC absolute maximum coldest conditions,140VDC start-up and operating maximum) |
| Max PV short circuit current(A) | N/A | N/A | 40 | 40 | 40 | 40 |
| Rated charging current –adjustment (A) | AC charger | 50 | 40 | 40 | 20 | 30 | 40 |
| Solar charger | 50 | 50 | 60 | 60 | 60 | 60 |
| Max charging current (A) | 100 | 90 | 100 | 80 | 90 | 100 |
| MPPT efficiency | / | / | 99.90% |
| Solar Charger Max efficiency | 98% | 98% | 98.00% |
| Battery types | AGM/GEL/LFP/Flooded | AGM / GEL/ LFP / Flooded /Lead-carbon/Traction / Semi-traction |
| Temperature compensation | Yes, -4mV / ℃/cell, settable |
| Other Data |
| Protection | a)shortcut, b)over load, c)over temperature, d)input voltage out of range, e)battery low voltage disconnect, f)battery high voltage protection, g)fan lock |
| AC out1 current (A) | N/A | N/A | 16 | 16 | 25 | 32 |
| AC out2 current (A) | N/A | N/A | 40 | 40 | 40 | 40 |
| Auxiliary output | x1, programmable | X2, programmable |
| Remote on-off | Yes | Yes | N/A | N/A | N/A | N/A |
| CAN Bus communication port | N/A | N/A | Yes | Yes | Yes | Yes |
| General purpose com. Port | RS485 | CAN, RS485 |
| Operating ambient temperature range | -20℃~60℃ |
| Storage temperature range | -40℃~85℃ |
| Relative humidity in operation | 95% without condensation |
| Mechanical Data |
| Dimension (mm) (max) | 470*233*95 | 515*275*145 |
| Net Weight (kg) | 11.6 | 12 | 20 | 20 | 22 | 25 |
| Cooling | Forced fan |
| Protection | IP20 | IP21 |
| Standard |
| Safety | EN62109-1, EN62109-2 | EN 62477-1 EN 62109-1,EN 62109-2 |
| EMC | EN61000-3-2, EN61000-3-3,EN61000-6-1, EN61000-6-3 | EN61000-6-4,EN61000-6-2,EN61000-3-3,EN61000-3-2 |
